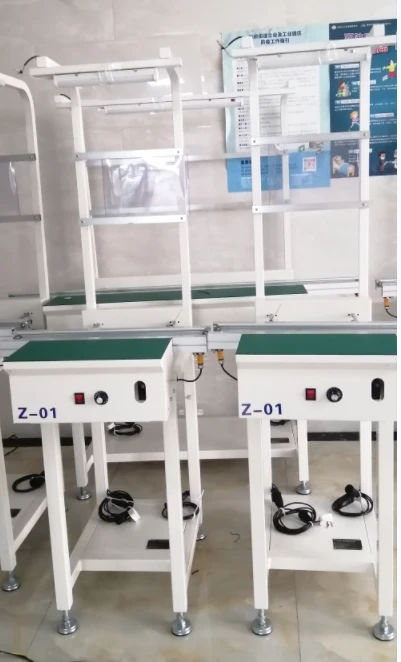

The function of the SMT connection station is to connect SMT production lines, and it can also be used for buffering, inspection, testing of PCB or manual insertion of electronic components.
1. Check before the smt connection station is powered on
1. Check whether the power supply cord is damaged.
2. Check whether the equipment is well grounded.
3. Check whether the control buttons are reset.
4. Check whether the width of the guide rail is appropriate.
5. Check whether the belt is loose.
6. If there is no abnormality in the above, it can be started and ready for work.
2. Operation process of SMT docking station
1. Control panel description
The FINISH button is not self-locking. Each time it is pressed, it means that the inspection is completed, the PCB board has passed, and the operation continues.
If the PASS/CHECK button is not pressed, it means that the PASS PCB board does not need to be checked and passes automatically; pressing the CHECK button means that the PCB board needs to be checked manually and needs to be used in conjunction with FINISH.
POWER is the power switch, press to power on. LIGHT is a light switch.
3. Instructions on the operation steps of the SMT connection table. Adjust the speed of the belt according to the speed of the front and rear connections.
1. SMT connection station automatic control mode a Press the POWER button; b press the LIGHT button; c press the PASS/CHECK button.
2. Manual control mode of SMT connection station a. Press the POWER button; b. Press the LIGHT button; c. When the inspection is completed, press the FINISH button.
3. Shut down and press the POWER button
4. Precautions for the operation of SMT docking station
1. Ensure that there are no foreign objects in the transportation part, belts, pulleys and transportation guide rails to ensure smooth and smooth transportation.
2. Regularly refuel the transmission part and the rack or the width adjusting screw, and the refueling must be performed in the shutdown state.
3. In case of power failure, turn off the main power switch of the equipment immediately.
