Products parameter
|
Product name
|

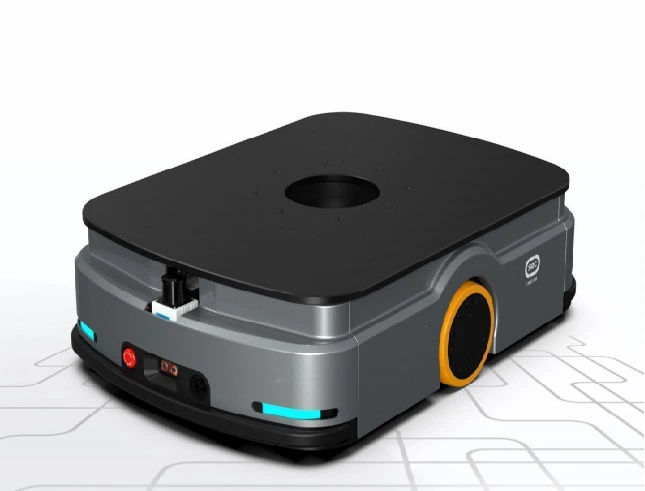

Laser SLAM Jacking AGV
|
|
L x W x H
|
950 x 650 x 250 mm
|
|
Rotation diameter
|
1015 mm
|
|
Weight (with battery)
|
170 kg
|
|
Maximum load capacity
|
600 kg
|
|
Chassis ground clearance
|
25 mm
|
|
Lifting platform dimensions
|
850 x 650 mm
|
|
Maximum lifting height
|
60±2 mm
|
|
Navigation laser scanning height
|
194 mm (H1)
|
|
Passability (slope / step / gap)
|
≤5% / 5 mm / 30 mm
|
|
Minimum aisle width
|
790 mm
|
|
Navigation position accuracy
|
±5 mm
|
|
Navigation angle accuracy
|
±0.5°
|
|
Driving speed
|
≤1.5 m/s
|
|
Battery specifications
|
48 V / 24 Ah
|
|
Comprehensive battery life
|
8 h
|
|
Charging time (10% to 80%)
|
≤2 h
|
|
Charging method
|
Manual / Automatic
|
Products Description
packing and shipping
Packing Method:
1)Standard box package for light and small item;
2)Strong wood package for heavy and large equipment;
Shipping Way:
1)By air ,for sample and small package ,wordwide express like DHL,UPS,FEDEX,EMS....
2)By sea, for large package and quantity;
3)By car or other ways as customer requested;
