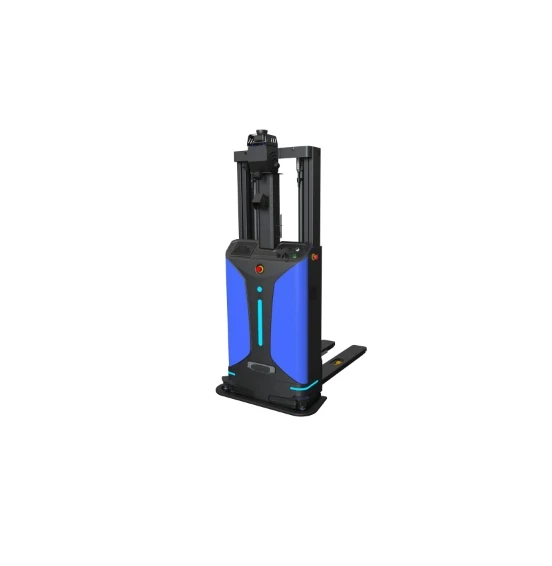

Machine Detail Image
Specification
| Item | Value |
| Model | ZS-CDD14-CE |
| Navigation position accuracy | ±10mm |
| Load centre distance | 600mm |
| Rated load capacity | 1400kg |
| Tray type | 3-stringer pallet |
| Navigation type | Laser SLAM |
| Driving mode | Automatic navigation,handheld driving |
| Voltage | 220v |
| Power | 24V/180(210)Ah/100A |
| Dimension(L*W*H) | 1722*951*2060mm |
| Navigation angle accuracy | ±0.5* |
| Fork in-position accuracy | ±10mm |
| Standard lifting height | 1600/3000mm |
| Gantry height | 2130/3545mm |
| Fork surface ground clearance(at the lowest position) | 85+5mm |
| Navigation laser scanning height | P+F:2045±5mm/2195±5mm,SICK:2013±5mm/2166±5mm |
| Fork size: length * width * height | 1220*180*70mm |
| Fork outer width | 555/570/680 mm |
| Right-angle stacking channel width, pallet 1000x1200 (1200 placed along the fork) | 1912+200/1914+200/1936+200mm |
| Map area (Single) | <400000m² |
| Minimum turning radius | 1206+200mm |
| Driving speed: full load/no load | 1.2/1.5m/s |
| Lifting speed: full load/no load | 115/170 mm/s |
| Lowering speed: full load/no load | 160/125 mm/s |
| Passabillity (slope/step/gap) | 5%/5mm/15mm |
| Tire size: driving wheel | 230*75mm |
| Tire size: bearing wheel | 80*54mm |
| Tire size: balance wheel | 115*55mm |
| Wheel number: driving wheel/ balance wheel/bearing wheel | 1/2/4 |
| Battery specifications | 24V/180(210)Ah (Lithium Iron Phosphate) |
| Battery weight | 58kg |
| Comprehensive battery life | 10h |
| Charging parameters | 24V/100A |
| Charging time(10%-80%) | 2h |
| Charging method | Manual/Automatic |
| Battery cycle number | >2000 times |
Features
1.CE Safety Certified,Outstanding Performance & Excellent Safety Standard by Design ：Obtion CE certification(ISO 3691-4:2020) and other certifications.
Machine Dimension
FAQ
1.what can you buy from us?
SMT whole production line,chip mounter,AOI inspection machine,pick and place machine,reflow oven and so on.
2. How can you get our help and after-sale service?
We have offices overseas in USA, Mexico, India, Thailand, Russia, etc. If you have technical problems,we can help.
3. what services can we provide?
A、Quick response within 24 hours;
B、Offer free spare parts and service within one year of warranty,but all the other relative cost should be on the buyer's account;
C、Technology Support :Provide Demo operation video for training ;If you have time,welcome to our company,we will arrange engineers to show you the operation
4.What we can do?
1、PLC&PC research
2、Hardware development
3、Process&Quality Improvement
4、Customize for customer
5、On-site lean management
6、Market analysis&planning
