High-precision XP242E Pick and Place Machine SMT Whole Line Machine for PCB/PCBA Assembly
New/Used Automatic Pick and Place Machine SM320 SMT Production Line for PCB/PCBA Assembly
SMT SM482 Pick and Place Machine with High-speed Multi-functional for PCB/PCBA Board Assembly

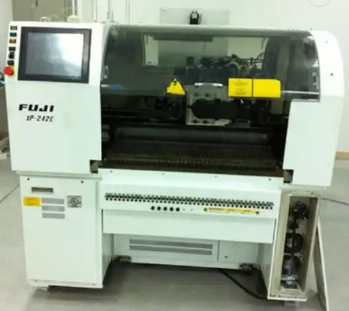

Machine detail Image
Specification
| Item | Value |
| Model | XP242E |
|
Pcb size: maximum |
457X356mm; minimum: 50X50mm |
|
pcb thickness |
0.3--4.0mm |
|
Component type |
Front side: Up to 40 types; Rear side: 10 kinds of 10 layers/20 kinds of 10 layers |
|
Board loading time |
4.2 seconds |
|
Mounting accuracy |
±0.050mm cpk≥1.00: rectangular components, etc.; ±0.040mm cpk≥1.00: QFP, etc. |
|
Mounting speed |
0.43 seconds / chip, 8,370 / hour; rectangular element; 0.56 seconds / piece, 6,420 piece / hour: IC, etc. |
|
Applicable components |
1005-45mm*150mm Maximum height: 25.4mm |
|
Dimension |
L 1,500mm*W1,560mm*H1,537mm (excluding signal tower) |
|
Machine weight |
about 2,800KG (main body) |
Features
1.The XP242E mounting machine is an efficient mounting machine that has high production efficiency among similar products and can meet different levels of production needs.
2.The XP242E mounting machine adopts a precise mounting system, with a high-precision position servo system and accurate instant mounting technology, which can ensure the accuracy of the chip and mounting.
3. The mounting machine is compatible with different models and types of chips, which can meet the needs of different chip applications and ensure the quality and efficiency of mounting.
4.The XP242E mounting machine also has various intelligent functions, such as programmable mounting programs, automatic detection and removal of mounting abnormalities, which can effectively improve production efficiency and quality.
5. The mounting machine is equipped with high-quality vacuum nozzles and precision mounting heads, which can ensure the quality and stability of the chip and avoid unnecessary mounting abnormalities.
6.The control system of the XP242E SMT machine is very simple and easy to use, allowing users to quickly get started, reducing learning and operating costs.
7. The performance of the SMT machine is stable and reliable, and it has comprehensive after-sales service and technical support, which can ensure the user experience and the lasting stability of the device.
8. The XP242E SMT machine has low operating noise, small footprint, simple operation, and convenient and flexible layout.
9.The SMT machine has a fast working speed and can produce chips in bulk, improving production efficiency and quality, thereby enhancing the profitability of the enterprise.
10. Through the XP242E SMT machine, intelligent manufacturing can be achieved, saving human resources and financial costs, providing more support for private enterprises, and promoting industrial development and upgrading.
Shipping
FAQ
1.what can you buy from us?
SMT whole production line,chip mounter,AOI inspection machine,pick and place machine,reflow oven and so on.
2. How can you get our help and after-sale service?
We have offices overseas in USA, Mexico, India, Thailand, Russia, etc. If you have technical problems,we can help.
3. what services can we provide?
A、Quick response within 24 hours;
B、Offer free spare parts and service within one year of warranty,but all the other relative cost should be on the buyer's account;
C、Technology Support :Provide Demo operation video for training ;If you have time,welcome to our company,we will arrange engineers to show you the operation
4.What we can do?
1、PLC&PC research
2、Hardware development
3、Process&Quality Improvement
4、Customize for customer
5、On-site lean management
6、Market analysis&planning
