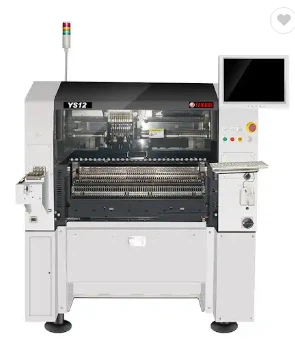

YS12 high quality pick and place machine with good price for led assembly pcb&pcba
Pick And Place Machine 730 / 740 / 750 / 760 Smd Mountering Machine Pcb Manufacturing
Detail Image
Specification
| Item | Value |
| Model | SM320 |
|
Component Recognition mode
|
FLYING VISION +STAGE VISION
|
|
Components
|
CHIP 1608 18500 CPH (IPC9850)
|
|
Fixed Camera Vision System
|
1.4 SEC/QFP208(TRAY SUPPLY STANDARD)
|
|
Mounting accuracy
|
CHIP/QFP ±50 18500cph/h
|
|
FLYING VISION
|
1005～□22mmIC
|
|
Standard stage vision(FOV 35)
|
32mmIC(Pitch 0.4mmQFP/0.75mmBGA/～□55mm(MFOV))
|
|
Standard stage vision(FOV 45)
|
42mmIC(Pitch 0.5mmQFP/1.0mmBGA/～□55mm(MFOV))
|
|
Standard stage vision(FOV 20)
|
17mmIC(Pitch 0.3mmQFP/0.5mmBGA)Min.lead pitch(QFP)
|
| FOV10 |
0.3mm(QFP)/0.65mm(BGA) Min.Ball pitch (BGA)
|
|
FOV15
|
0.5mm(QFP)/0.75mm(BGA)
|
|
FOV25
|
0.5mm(QFP)/0.75mm(BGA)
|
|
Max.Height
|
H12mm(Flying camera standard)
|
|
PCB size
|
Min size:50（L）*40(W)
|
|
PCB thickness
|
0.38mm-4.2mm
|
|
Feeder quantity
|
120ea/112ea(docking cart)
|
|
Power supply
|
AC220/220/240V(50/60HZ,3 PHASE)(Option:340/380/415V)
|
|
Air compressor
|
5kg/㎡,260 NI/MIN
|
|
Weight
|
1800KG
|
|
Dimension
|
1650 L*1680 D*1530 H
|
Shipping
Package:
1.Inner packing :vacuum packing/plastic bag.
2.Standard carton packing/ESD packing
3.Customized packing.
Delivery:
1.By air:sample and small package,worldwide expresses like DHL,UPS,FEDFX,EMS...
2.By sea:large package and quantity.
3.By car,by train or other ways acoording to customers' requirements.
4.The wooden box photo is below.
