800M Hot Air Circulation Lead-free Reflow Oven Welding Machine for PCB / PCBA Board Assembly

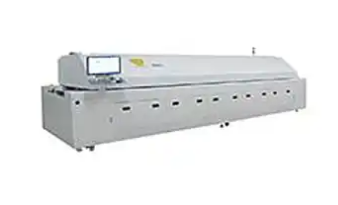

Machine Detail Image
Specification
| Item | Value |
| Model | ZS-500S |
|
Suitable for solder paste type
|
Lead-free solder, ordinary solder, red glue
|
|
Processing the maximum substrate size(MM)
|
MAX 400(mm)
|
|
Applicable component type
|
0805、0603、0402. 0201、01005 and CSP、BGA etc.One sided/Double sides
|
|
Dimension L*W*H（MM）
|
3200*850*1450mm
|
|
Weight
|
600KG
|
|
Heating zone
|
Up 5 hot air 、Down 5zone 、10 heating zone、1 dedicated cooling zone
|
|
Temperature zone control accuracy
|
±1℃
|
|
Temperature control range
|
~350 0C
|
|
Heating time (cold start)
|
About 15mins
|
|
Temperature stabilization time
|
Within 2 mins
|
|
Conveyor belt width
|
400mm
|
|
Transmission method
|
Chain/net belt transmission
|
|
Conveying direction
|
Left → right, right → left (optional)
|
|
Transmission chain surface height
|
900mm±20
|
|
Transportation speed
|
0~2200mm/min
|
|
guide
|
Special anti-twist aluminum profiles (optional)
|
|
Chain expansion
|
Less 2.5mm
|
|
Chain lubrication
|
Manual refueling device
|
|
Chain tensioning device
|
Chain tensioning automatically
|
|
1 cooling zone
|
AC220V Straight axis fan
|
|
Rosin smoke treatment
|
Forced discharge of special pipes before and after the furnace
|
|
cooling method
|
1 separate cooling zone
|
|
power supply
|
3-phase five-wire system 380V
|
|
Total power
|
20KW
|
|
Starting power / no-load power
|
15KW/0.5KW
|
|
No-load constant temperature power
|
About 6KW
|
|
Transfer motor
|
Motor 220VAC Three phase 90W
|
|
Wind motor
|
Taiwan motor 2800 rpm
|
|
Alarm
|
Over temperature alarm, automatic cut off heating power
|
|
Control host
|
Computer + solid state drive
|
|
Computer operating system
|
Reflow soldering control system
|
Features
1、LCD computer + intelligent control system, high temperature control accuracy ± 1 ° C (if the computer crashes unexpectedly, can work offline, does not affect production), to ensure that the control system is stable and reliable;
2、WindowsXP and Win7 operation interface, powerful, easy to operate, with a key to restore the system;
3、The upper furnace is opened with a cylinder lifting machine to ensure safety and reliability;
4、Equipped with mesh belt tensioning device, the transportation is stable, no jitter, no deformation, and the PCB transportation is smooth;
5、Synchronous rail transmission mechanism (can be connected with automatic placement machine\automatic receiver),ensuring accurate and high service life of the guide rail and anti-button; (optional guide rail)
6、Manually control the lubrication system, which can be manually set to refuel the transmission chain;
7、All heating zones are PID controlled by computer (can be separately opened in the temperature division zone. Partition heating can be used to reduce the starting power, and the heating time is 10-15 minutes);
8、Network/chain transmission is fully closed-loop controlled by computer to meet the simultaneous production of different types of PCBs;
9、With fault sound and light alarm function (using LED lights);
10、Using the world's leading hot air circulation heating method of HELLER, high-efficiency supercharged accelerating air passage, greatly increasing circulating hot air flow, rapid heating, high thermal compensation efficiency, high temperature welding and curing;
11、The temperature zone has independent temperature sensing sensors to monitor and compensate the temperature balance of each temperature zone in real time;
12、Operating system with password management to prevent irrelevant personnel from changing process parameters.Operation record management can trace the process of changing process parameters to facilitate improved management. It can store the user's existing temperature and speed settings and the temperature curve under their settings, and can Print all data and curves;
13、Integrated control window, computer switch, test curve, print curve and transmission data can be easily operated and designed with humanity. Equipped with a three-channel temperature curve online test system, the actual temperature curve of the welded object can be detected at any time (no additional temperature curve tester is required);
14、Rapid cooling system from international technology, using magnifying glass centralized high-efficiency quenching,cooling rate up to 4~8 °C / sec, easy to manage; ensure solder joint crystallization
15、Rosin recovery system: set in the furnace inlet and outlet for rosin recovery system, easy to maintain and operate, fast and flexible;
16、Special supercharged air transport structure and special-shaped heating wire design, no noise, no vibration, high heat exchange rate, most in line with the strict requirements of lead-free process, especially for lead-free products with high difficulty welding requirements.
Shipping
Packaging:1)Standard box package for light and small item;
2)Strong wood package for heavy and large equipment;
Certifications
Equipment strength
Shenzhen Zhengshan Electronics Co., Ltd. has been established for about 15 years, with a solid technical research foundation and a large number of high-quality customers. We not only have our own research and development team, but also cooperate with high-quality manufacturers. For example, some major brands in the industry have guaranteed quality.
