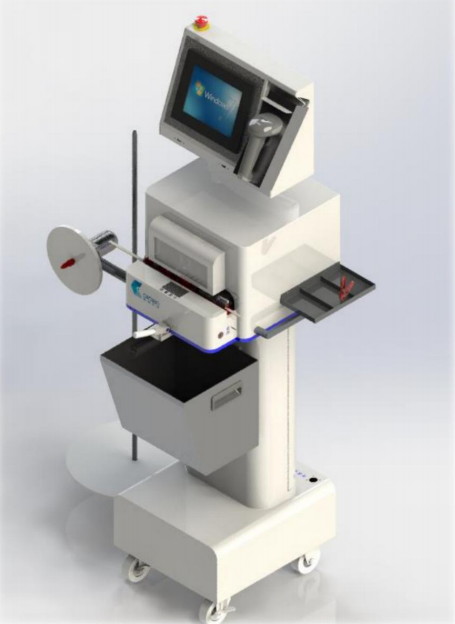

The difference between Auto and Manual splicer
| Comparison project | Automatic splicing machine | Manual splicing machine | Result |
|
C/T(sec)
|
84.8 | 41.1 |
50% increase in efficiency
|
|
Feeding &Feeding Success Rate
|
80% | 97% |
Machine stability
|
|
Poor quality after the furnace (piece)
|
0 | 0 |
Quality stability
|
|
Anti-error
material & traceability
|
Rely on employee compliance &
Manual recording
|
Staggered equipment stop picking & picking
information traceable
|
Specification
|
Dimension
|
600mm*490mm*1480mm
|
|
Working height
|
910mm
|
|
Receiving cycle
|
8s(exclude automatic receipt time)
|
|
Connection accuracy
|
<0.1mm
|
|
Receiving object
|
Meet 0.25-1.3mm 8MM paper tape, glue tape
|
|
power supply
|
Self-contained lithium battery power supply DC 24V
|
|
operating hours
|
Full power state 10-12H
|
|
Voltage
|
220V 50Hz
|
|
Low voltage alarm
|
Comes with low voltage reminder function
|
|
Material loss
|
Self-contained empty level detection
|
|
Feed pass rate
|
≥97％
|
|
Mechanical noise
|
＜50 decibel
|
|
rated power
|
220W
|
|
Vacuum pressure
|
-20Kpa
|
|
Tape winding function
|
Button control automatic receipt
|
|
Receiving auxiliary material (film)
|
Accessories width 13mm* length 32mm* thickness 0.02mm,
2000 sheets per roll
|
|
Anti-error material system
|
Self-contained material barcode scanning comparison error
prevention (optional customer error protection system docking)
|
|
Weight
|
65-70KG
|
